adafruit_clue

A high level library representing all the features of the Adafruit CLUE.

  • Author(s): Kattni Rembor

Implementation Notes

Hardware:

Software and Dependencies:

class adafruit_clue.Clue

Represents a single CLUE.

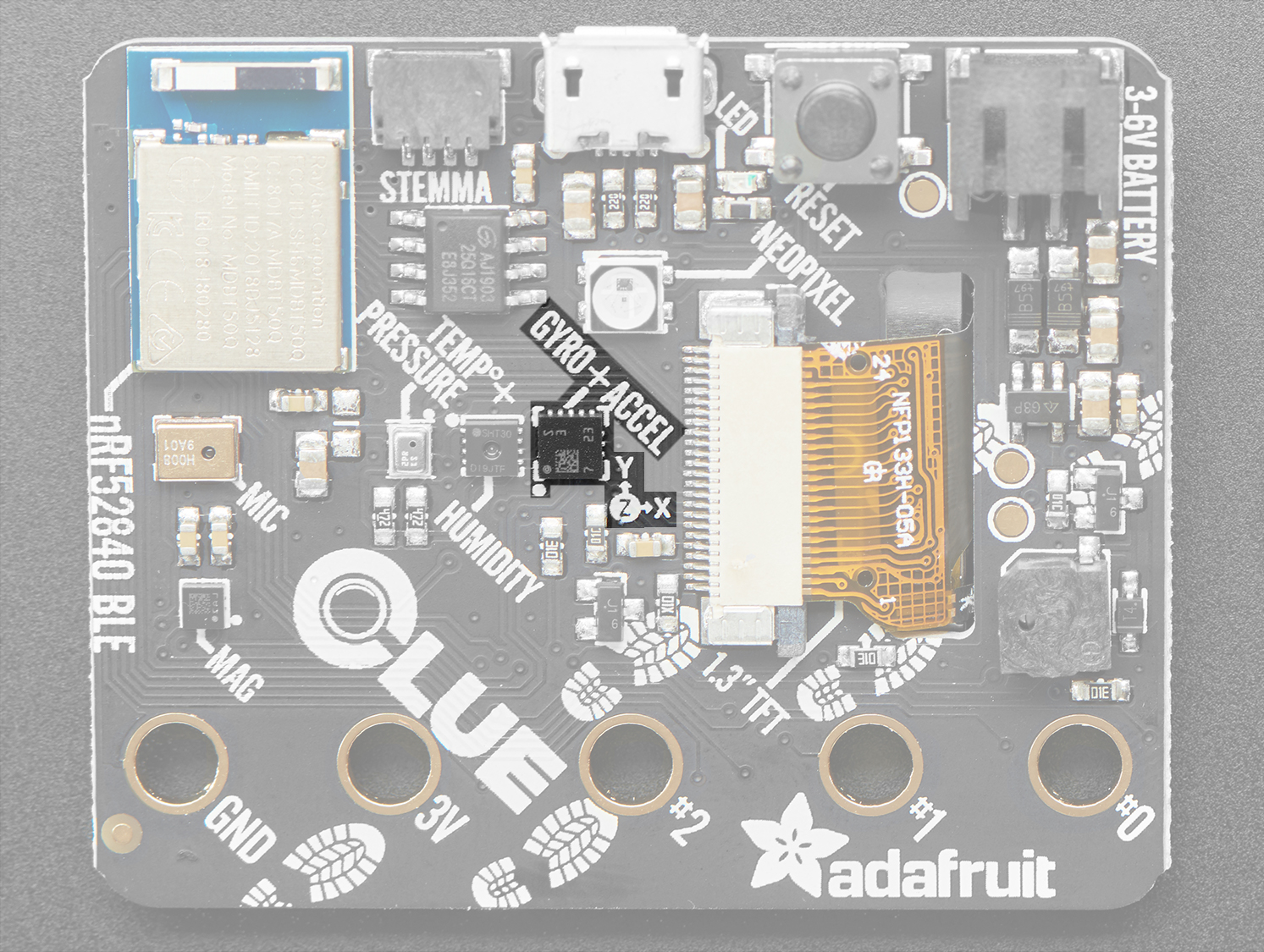

acceleration

Obtain acceleration data from the x, y and z axes.

Accelerometer

This example prints the values. Try moving the board to see how the printed values change.

To use with the CLUE:

from adafruit_clue import clue

while True:
    print("Accel: {:.2f} {:.2f} {:.2f}".format(*clue.acceleration))
altitude

The altitude in meters based on the sea level pressure at your location. You must set sea_level_pressure to receive an accurate reading.

Altitude sensor

This example prints the value. Try moving the board vertically to see the value change.

from adafruit_clue import clue

clue.sea_level_pressure = 1015

print("Altitude: {:.1f}m".format(clue.altitude))

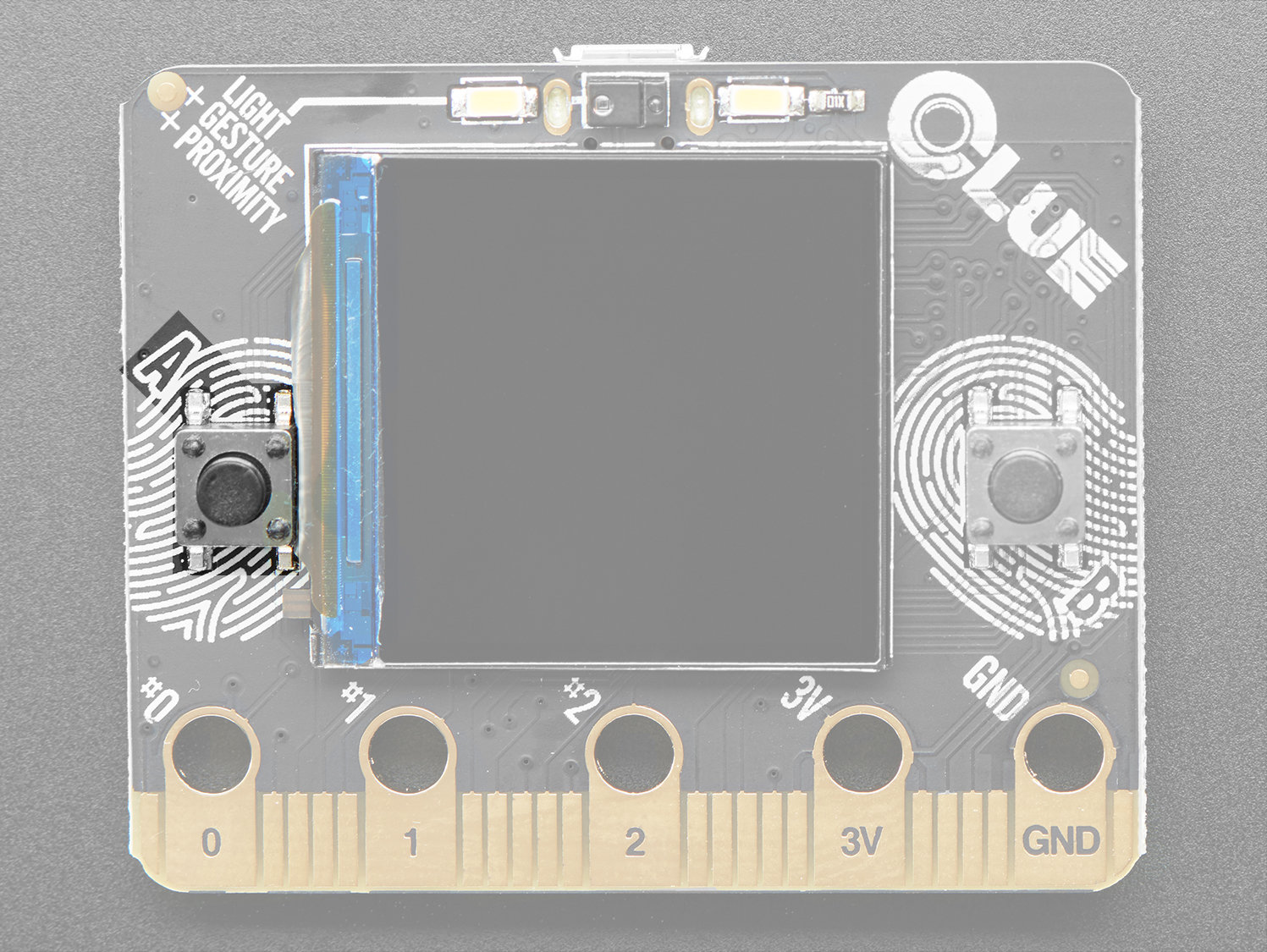

button_a

True when Button A is pressed. False if not.

Button A

This example prints when button A is pressed.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.button_a:
        print("Button A pressed")
button_b

True when Button B is pressed. False if not.

Button B

This example prints when button B is pressed.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.button_b:
        print("Button B pressed")
color

The red, green, blue, and clear light values. (r, g, b, c)

Color sensor

This example prints the values. Try holding something up to the sensor to see the values change. Works best with white LEDs enabled.

To use with the CLUE:

from adafruit_clue import clue

while True:
    print("Color: R: {} G: {} B: {} C: {}".format(*clue.color))
gesture

A gesture code if gesture is detected. Shows 0 if no gesture detected. 1 if an UP gesture is detected, 2 if DOWN, 3 if LEFT, and 4 if RIGHT.

Gesture sensor

This example prints the gesture values. Try moving your hand up, down, left or right over the sensor to see the value change.

To use with the CLUE:

from adafruit_clue import clue

while True:
    value = clue.gesture
    if value:
        print("gesture: {}".format(value))
gyro

Obtain x, y, z angular velocity values in degrees/second.

Gyro

This example prints the values. Try moving the board to see how the printed values change.

To use with the CLUE:

from adafruit_clue import clue

while True:
    print("Gyro: {:.2f} {:.2f} {:.2f}".format(*clue.gyro))
humidity

The measured relative humidity in percent.

Humidity sensor

This example prints the value. Try breathing on the sensor to see the values change.

To use with the CLUE:

from adafruit_clue import clue

while True:
    print("Humidity: {:.1f}%".format(clue.humidity))
loud_sound(sound_threshold=200)

Utilise a loud sound as an input.

Parameters:sound_threshold (int) – Threshold sound level must exceed to return true (Default: 200)
Microphone (sound sensor)

This example turns the NeoPixel LED blue each time you make a loud sound. Try clapping or blowing onto the microphone to trigger it.

from adafruit_clue import clue

while True:
    if clue.loud_sound():
        clue.pixel.fill((0, 50, 0))
    else:
        clue.pixel.fill(0)

You may find that the code is not responding how you would like. If this is the case, you can change the loud sound threshold to make it more or less responsive. Setting it to a higher number means it will take a louder sound to trigger. Setting it to a lower number will take a quieter sound to trigger. The following example shows the threshold being set to a higher number than the default.

from adafruit_clue import clue

while True:
    if clue.loud_sound(sound_threshold=300):
        clue.pixel.fill((0, 50, 0))
    else:
        clue.pixel.fill(0)
magnetic

Obtain x, y, z magnetic values in microteslas.

Magnetometer

This example prints the values. Try moving the board to see how the printed values change.

To use with the CLUE:

from adafruit_clue import clue

while True:
    print("Magnetic: {:.3f} {:.3f} {:.3f}".format(*clue.magnetic))
pixel

The NeoPixel RGB LED.

NeoPixel

This example turns the NeoPixel purple.

To use with the CLUE:

from adafruit_clue import clue

while True:
    clue.pixel.fill((255, 0, 255))

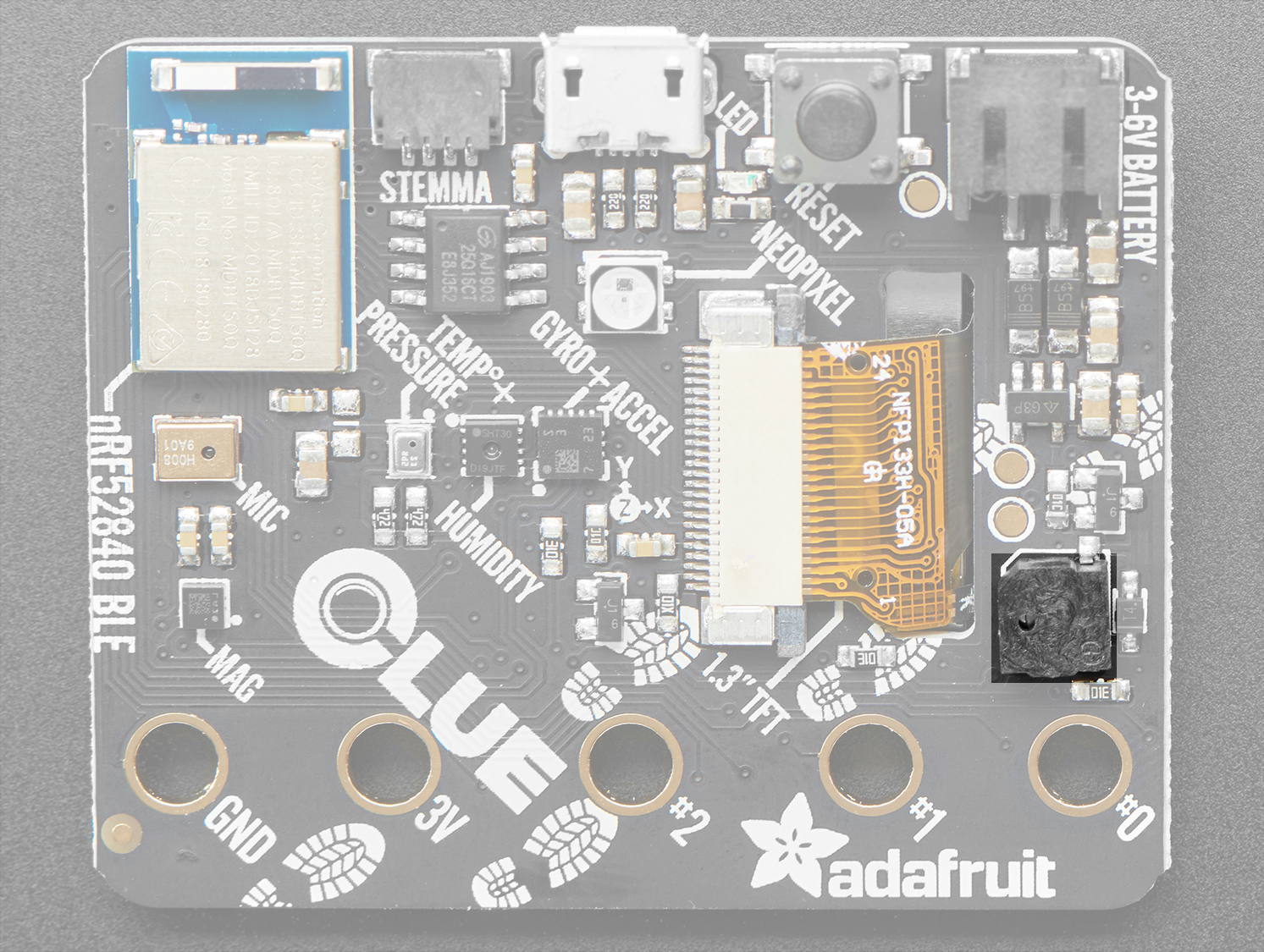

play_tone(frequency, duration)

Produce a tone using the speaker. Try changing frequency to change the pitch of the tone.

Parameters:
  • frequency (int) – The frequency of the tone in Hz
  • duration (float) – The duration of the tone in seconds
Speaker

This example plays a 880 Hz tone for a duration of 1 second.

To use with the CLUE:

from adafruit_clue import clue

clue.play_tone(880, 1)
pressure

The barometric pressure in hectoPascals.

Barometric pressure sensor

This example prints the value.

To use with the CLUE:

from adafruit_clue import clue

print("Pressure: {:.3f}hPa".format(clue.pressure))

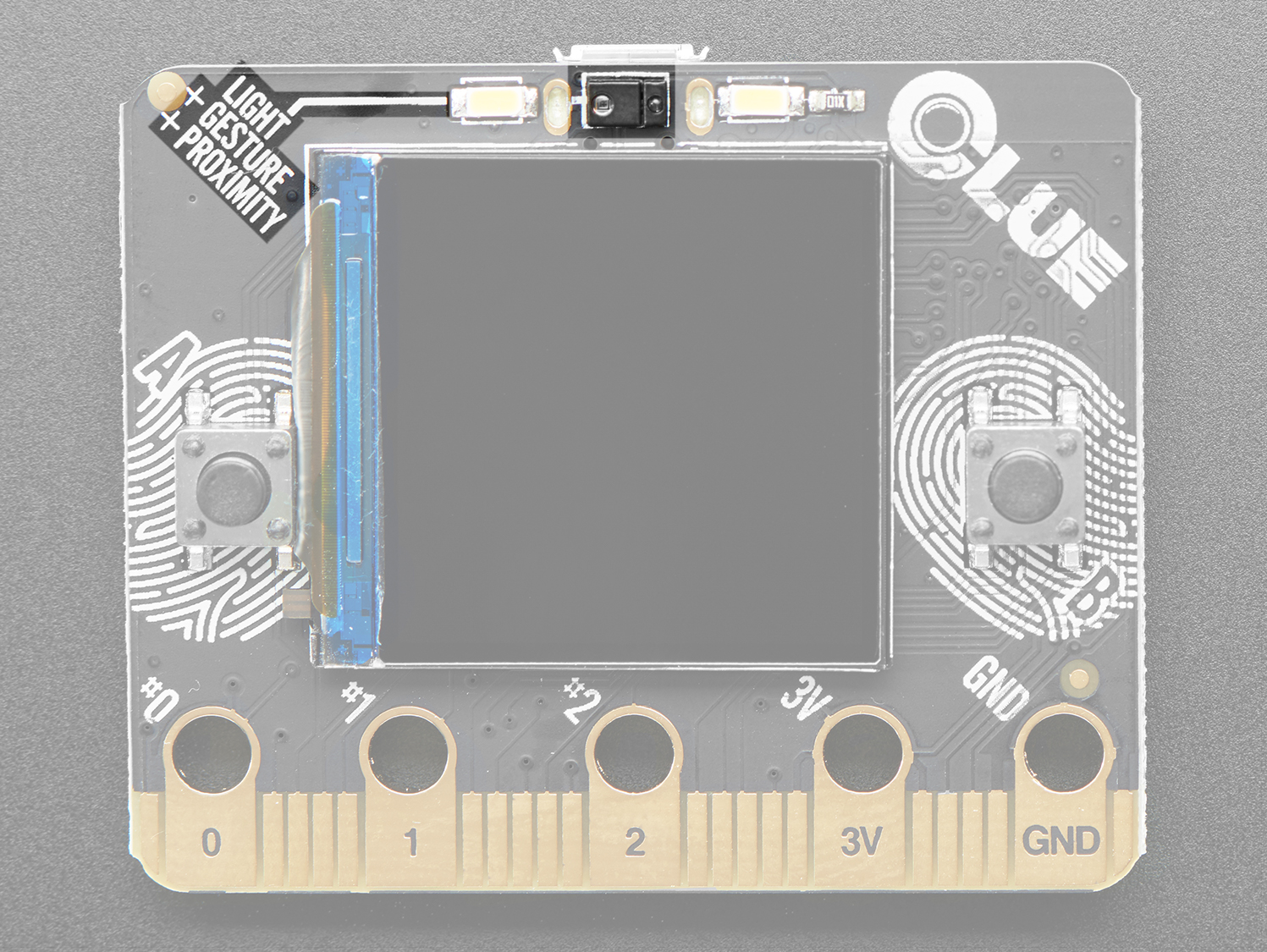

proximity

A relative proximity to the sensor in values from 0 - 255.

Proximity sensor

This example prints the value. Try moving your hand towards and away from the front of the board to see how the printed values change.

To use with the CLUE:

from adafruit_clue import clue

while True:
    print("Proximity: {}".format(clue.proximity))
red_led

The red led next to the USB plug labeled LED.

Red LED

This example turns on the red LED.

To use with the CLUE:

from adafruit_clue import clue

clue.red_led = True
sea_level_pressure

Set to the pressure at sea level at your location, before reading altitude for the most accurate altitude measurement.

Barometric pressure sensor

This example prints the value.

To use with the CLUE:

from adafruit_clue import clue

clue.sea_level_pressure = 1015

print("Pressure: {:.3f}hPa".format(clue.pressure))
shake(shake_threshold=30, avg_count=10, total_delay=0.1)

Detect when the accelerometer is shaken. Optional parameters:

Parameters:
  • shake_threshold – Increase or decrease to change shake sensitivity. This requires a minimum value of 10. 10 is the total acceleration if the board is not moving, therefore anything less than 10 will erroneously report a constant shake detected. (Default 30)
  • avg_count – The number of readings taken and used for the average acceleration. (Default 10)
  • total_delay – The total time in seconds it takes to obtain avg_count readings from acceleration. (Default 0.1)
static simple_text_display(title=None, title_color=(255, 255, 255), title_scale=1, text_scale=1, font=None, colors=None)

Display lines of text on the CLUE display. Lines of text are created in order as shown in the example below. If you skip a number, the line will be shown blank on the display, e.g. if you include [0] and [2], the second line on the display will be empty, and the text specified for lines 0 and 2 will be displayed on the first and third line. Remember, Python begins counting at 0, so the first line on the display is 0 in the code.

Setup occurs before the loop. For data to be dynamically updated on the display, you must include the data call in the loop by using .text =. For example, if setup is saved as clue_data = simple_text_display() then clue_data[0].text = clue.proximity must be inside the while True: loop for the proximity data displayed to update as the values change. You must call show() at the end of the list for anything to display. See example below for usage.

Parameters:
  • title (str) – The title displayed above the data. Set title="Title text" to provide a title. Defaults to None.
  • title_color – The color of the title. Not necessary if no title is provided. Defaults to white (255, 255, 255).
  • title_scale (int) – Scale the size of the title. Not necessary if no title is provided. Defaults to 1.
  • text_scale (int) – Scale the size of the data lines. Scales the title as well. Defaults to 1.
  • font (str) – The font to use to display the title and data. Defaults to built in terminalio.FONT.
  • colors – A list of colors for the lines of data on the display. If you provide a single color, all lines will be that color. Otherwise it will cycle through the list you provide if the list is less than the number of lines displayed. Default colors are used if colors is not set. For example, if creating two lines of data, colors=((255, 255, 255), (255, 0, 0)) would set the first line white and the second line red, and if you created four lines of data with the same setup, it would alternate white and red.
Display Clue Data demo

This example displays three lines with acceleration, gyro and magnetic data on the display. Remember to call show() after the list to update the display.

from adafruit_clue import clue

clue_data = clue.simple_text_display(title="CLUE Sensor Data!", title_scale=2)

while True:
    clue_data[0].text = "Acceleration: {:.2f} {:.2f} {:.2f}".format(*clue.acceleration)
    clue_data[1].text = "Gyro: {:.2f} {:.2f} {:.2f}".format(*clue.gyro)
    clue_data[2].text = "Magnetic: {:.3f} {:.3f} {:.3f}".format(*clue.magnetic)
    clue_data.show()
sound_level

Obtain the sound level from the microphone (sound sensor).

Microphone (sound sensor)

This example prints the sound levels. Try clapping or blowing on the microphone to see the levels change.

from adafruit_clue import clue

while True:
    print(clue.sound_level)
start_tone(frequency)

Produce a tone using the speaker. Try changing frequency to change the pitch of the tone.

Parameters:frequency (int) – The frequency of the tone in Hz
Speaker

This example plays a 523Hz tone when button A is pressed and a 587Hz tone when button B is pressed, only while the buttons are being pressed.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.button_a:
        clue.start_tone(523)
    elif clue.button_b:
        clue.start_tone(587)
    else:
        clue.stop_tone()
stop_tone()

Use with start_tone to stop the tone produced.

Speaker

This example plays a 523Hz tone when button A is pressed and a 587Hz tone when button B is pressed, only while the buttons are being pressed.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.button_a:
        clue.start_tone(523)
    elif clue.button_b:
        clue.start_tone(587)
    else:
        clue.stop_tone()
temperature

The temperature in degrees Celsius.

Temperature sensor

This example prints the value. Try touching the sensor to see the value change.

To use with the CLUE:

from adafruit_clue import clue

print("Temperature: {:.1f}C".format(clue.temperature))
touch_0

Detect touch on capacitive touch pad 0.

Pad 0

This example prints when pad 0 is touched.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.touch_0:
        print("Touched pad 0")
touch_1

Detect touch on capacitive touch pad 1.

Pad 1

This example prints when pad 1 is touched.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.touch_1:
        print("Touched pad 1")
touch_2

Detect touch on capacitive touch pad 2.

Pad 2

This example prints when pad 2 is touched.

To use with the CLUE:

from adafruit_clue import clue

while True:
    if clue.touch_2:
        print("Touched pad 2")
white_leds

The red led next to the USB plug labeled LED.

White LEDs

This example turns on the white LEDs.

To use with the CLUE:

from adafruit_clue import clue

clue.white_leds = True
adafruit_clue.clue = <adafruit_clue.Clue object>

Object that is automatically created on import.

To use, simply import it from the module:

from adafruit_clue import clue
